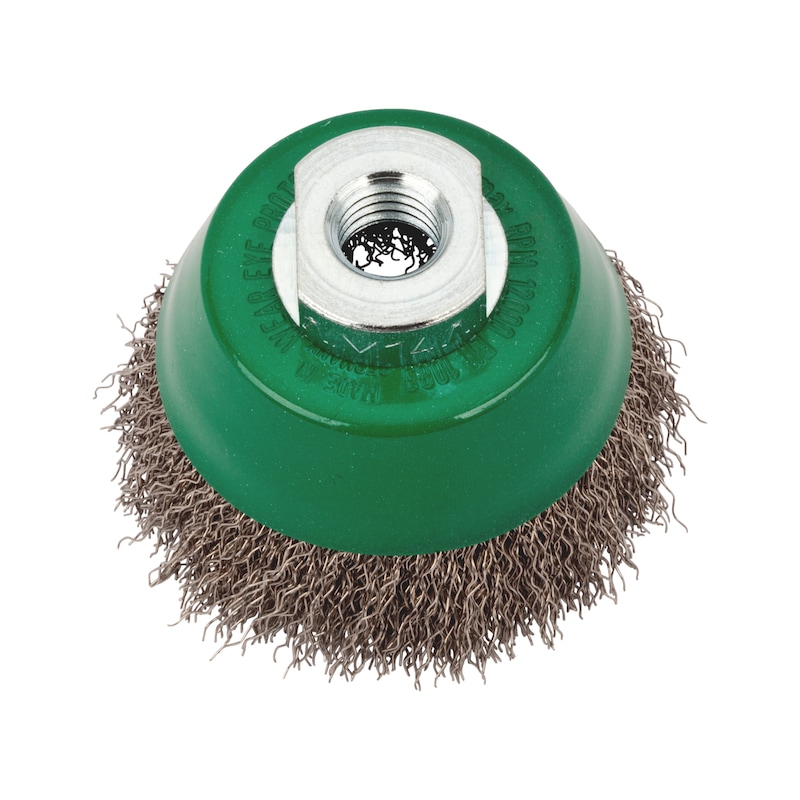

Wire cup brush Crimped stainless steel with M14 connecting thread - CPBRSH-AG-WAVED-SST-D65MMXM14

Wire cup brush Crimped stainless steel with M14 connecting thread

Name: Wire cup brush Crimped stainless steel with M14 connecting thread
Brand: Würth
SKU: 0714692015

Cup brush corrugated stainless steel wire
CPBRSH-AG-WAVED-SST-D65MMXM14

Art.-no. 0714692015

EAN 4050642385528

All versions

Similar products

Prices for customers after login

Wire cup brush Crimped stainless steel with M14 connecting thread

Art.-no. 0714692015

Prices for customers after login

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service: +60123453493

Ideal for flexible brushing on large stainless steel and aluminium surfaces

Efficient machining of large surfaces thanks to wire cup brush with crimped wire

Crimped wire bristles support each other and thus increase stability during brushing

For direct use on angle grinders

Notice

Only the bristle tips act on the workpiece. Excessive contact pressure does not improve the result, but increases the required drive power and reduces the service life of the brush.

For optimal results, use on angle grinders with adjustable speed.

Always wear safety goggles and protective gloves when working with machine brushes!

Instructions for use (optimising brushing results)
Measurement	Peripheral speed	Brush diameter	Wire thickness	Bristle length
Increase brushing effect	↑	↑	↑	↓
Reduce brushing effect	↓	↓	↓	↑
Brush creates ridge	↓		↑	↓

Applications	Peripheral speed [in m/s]
Recommended peripheral speeds for brushing
	15	20	25	30	35	40	45	50
Deburring			25 - 35
Cleaning welding seams					35 - 45
Removing scale					35 - 45
Polishing				30 - 40
Plastic machining	15 - 25

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Removing paint, dirt and rust

Derusting and polishing

Light deburring work


Diameter (D)	65 mm
Usable length of wire (H)	20 mm
Tool holding device (d)	M14
Wire diameter	0.35 mm
Material of wire	Stainless steel
Design	Corrugated
Suitable for angle grinder (point system)	4 of 4 points
Max. rotation speed	12000 rpm
EN standard	1083-2
